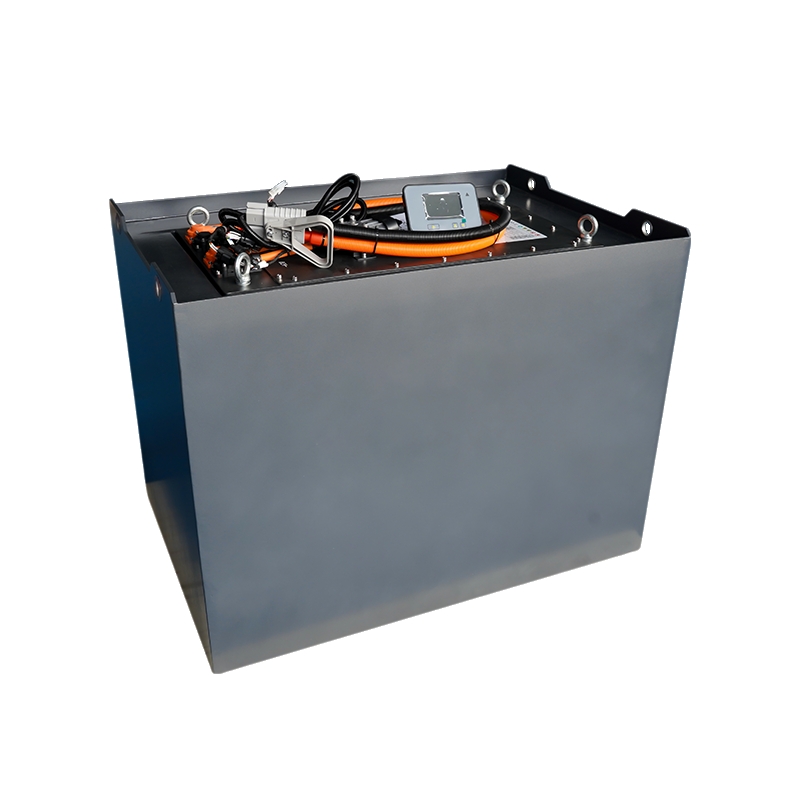

| HELI CPD40 Counterbalance Forklift Lithium Battery 83.2v 560Ah — Detailed Specifications | |
| Nominal Voltage | 83.2V |
|---|---|
| Nominal Capacity (@0.2C) | 560Ah |
| Nominal Energy | 46.59 kWh |
| Cell Chemistry / Type | LiFePO4 / Prismatic(Lithium iron Phosphate) |
| Cell Combination | 2P26S (280 Ah) |
| Charging Specifications | |
| Recommended Charging Voltage | 91.25 V (max.) |
| Max. Charging Current | 200 A |
| Discharging Specifications | |
| Discharging Cut-off Voltage | 62.5 V |
| Max. Continuous Discharging Current | 200 A |
| Max. Pulse Discharging Current | 300 A, ≤ 30 s |
| Performance & Life | |
| Self-discharge Rate | ≤ 4% in the first month after full charge; ≤ 1% per month thereafter |
| Cycle Life (25 ℃, 0.5C/0.5C, 80% DOD) | ≥ 3500 cycles |
| Mechanical & Interface | |
| Dimensions (L×W×H) | 1050*825*743 mm (41.3*32.5*29.2 in) or Customized. |
| Weight | ≈ 3000 lb (1400 kg) (with counterweight) |
| Communication Interface | CAN; cloud platform features available (remote monitoring, fault logs, SOC). |
| Operating Conditions | |
| Charge Temperature | 0 ℃ to 55 ℃ (32 ℉ to 131 ℉) |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉) |
| Storage Temperature | 0 ℃ to 45 ℃ (32 ℉ to 113 ℉) |
| Compliance & Protection | |
| Safety Standard | UN38.3, CE, IEC, CB, ISO9001 |
| Water & Dust Resistance | IP54 |
| Application | HELI CPD40 Counterbalance Forklift |
| Compatible Brand | HELI |
